Desktop 3 Heating Zone 1000mm 12kw Hot Air Reflow Oven

Shenzhen Jaguar Automation Equipment Co., Ltd
Contact Now

Desktop 3 Heating Zone 1000mm 12kw Hot Air Reflow Oven

Brand Name : JAGUAR

Model Number : A3

Certification : CE, ISO

Place of Origin : Shenzhen, China

MOQ : 1set

Price : To be negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30Sets Per Month

Delivery Time : 10-15 Working Days

Packaging Details : Stand Export Package by Vacuum and Plywood Case

Name : Reflow Soldering Machine

Name 1 : SMT Soldering Machine

Name 3 : Electronics Soldering Machine

Name 4 : PCB Soldering System

No. of heating zone : Up 3

Heating Mode : Up Hot Air

Length of Heating Zone : 1000mm

Conveyor : Mesh

Mesh Width : 300mm

Temperature range : Room temperature-300℃

Machine Dimension : 1600×700×800mm

Power Supply : Five lines and three phase 380V 50/60Hz, can option 220V

Contact Now

JAGUAR A3 Lead-free Reflow Oven with Up 3 Heating Zones

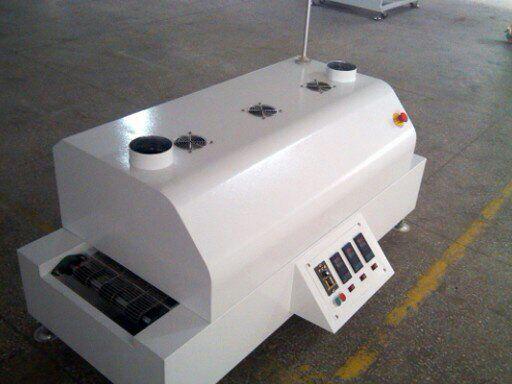

JAGUAR A3 Lead-free Reflow Oven is a desktop mini reflow oven

total dimension is only 1600×700×800mm.

300mm mesh conveyor, manual hook lift with 2nd support

up hot air 3 heating zone total length 1000mm.

accuracy PID temperature control.

JAGUAR A3 is a high cost efficient Reflow Oven.

it is suitable for prototype and small output production.

Specification:

Model JAGUAR A3

Heating System

Number of heating zones UP 3
Length of heating zones 1000MM
Heating mode Up:hot air
Cooling Mode Force air

Conveyor System

Max. Width of PCB 250mm
Mesh belt width 300mm
Transmission Direction L→R(or R→L)
Transmission Net Height 700±20mm
Transmission type Mesh
Conveyor speed 0-1000mm/min
Fixed rail side Front rail fixed(option: rear rail fixed)

Control system

Power supply 5 line 3 phase 380V 50/60Hz
Total power 12kw
Starting power 10kw
Normal power consumption 2KW
Warming time About 20 mins
Temp. setting range Room temperature-300℃
Temp. control method PID close loop control & SSR driving
Temp. control precision ±2℃
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temp. (extra-high/extra-low temp.)
Board dropped alarm Tower light:Yellow-warming, Green-normal, Red-abnormal

General

Dimension(L*W*H) 1600×700×800mm
Weight 150KG
Color Computer gray

Specifications :

The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .

Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1000mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .

2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .

3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .

4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

5. Failure diagnosis and sound light alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
